Analog Devices Inc. AD917x Evaluation Boards for 5G

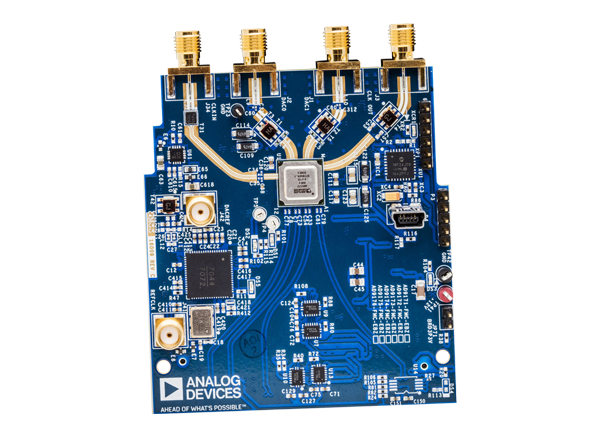

Analog Devices Inc. AD917x Evaluation Boards for 5G feature FMC connectors that comply with the Vita 57.1 standard. The FMC boards use a Mini-Circuits balun on the DAC output. The evaluation board is operated by attaching the board to a compatible FMC carrier board. Analog Devices has an FPGA carrier called the ADS7-V2. It serves as a digital pattern generator or data source and the power supply for the boards. The AD917x board has an option to be powered from a lab power supply when used in a special NCO-only mode.
Features
- FMC form-factor boards with FMC connectors
- Complies to the Vita 57.1 standard
- Uses a Mini-Circuits balun on the DAC output
Applications
- Wireless infrastructures
- Communications test equipment
- Signal generators (audio through RF)
- Electronics surveillance and countermeasures
- Military communications
- Aerospace and defense radars
Related Product
Analog Devices Inc. ADS7-V2EBZ ADS7-V2EBZ High Speed Evaluation Board
Supports evaluation of ADI high-speed A/D converters, D/A converters, & transceivers.
Analog Devices Inc. AD9172-FMC-EBZ Board for AD9172 16-Bit DAC
FMC form-factor board with an FMC connector that complies to the Vita 57.1 standard.
Analog Devices Inc. AD9173-FMC-EBZ Evaluation Board
AD9173 eval board with a Vita 57.1 standard-compliant FMC connector.
