Aptiv Sicma Panel-Through Sealed & Unsealed Connectors

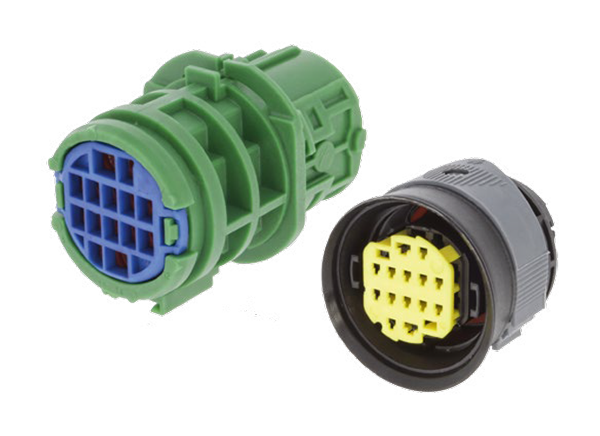

Aptiv Sicma Panel-Through Sealed and Unsealed Connectors are ideal for door-to-body, cockpit-to-engine, or battery-to-inverter (HEV/EV) solutions. These connectors feature a compact size for panel-mount applications and electrical links passing through a wall. The mat-sealed version offers a circular through-hole for convenience while the unsealed version utilizes a retractable protecting grid for male terminals to avoid pin bending. Aptiv Sicma Panel-Through Sealed and Unsealed Connectors offer a 2G or 3G vibration rating, range of cavity count (ways) and cavity configurations, and an operating temperature range of -40°C to +125°C.

Features

Common
- Compact size for panel-mount applications and electrical links passing through a wall
- Pass-through bulkhead type, mounted on a metal panel sheet
- Ideal for door-to-body, cockpit-to-engine, or battery-to-inverter (EV/HEV) solutions

Sealed
- Circular through-hole offers convenience for implementation
- Mat sealed
Unsealed
- Retractable protecting grid for male terminals to avoid pin bending

Applications

Door-to-body connections
Firewall between cockpit and engine interconnections
Bulkhead for battery control in EVs and HEVs

Specifications

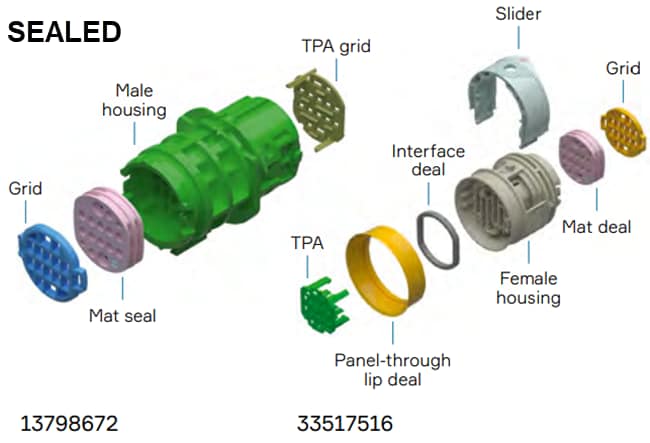

Sealed
- 14, 16, 24, 26, 33, 34, or 50 cavity count (ways)
- 0.64mm, 1.5mm, and 2.8mm cavity configurations
- 2G vibration rating
- <50N or <90N connector mating force
- IP64/IP67 sealing protection
- -40°C to +125°C operating temperature range

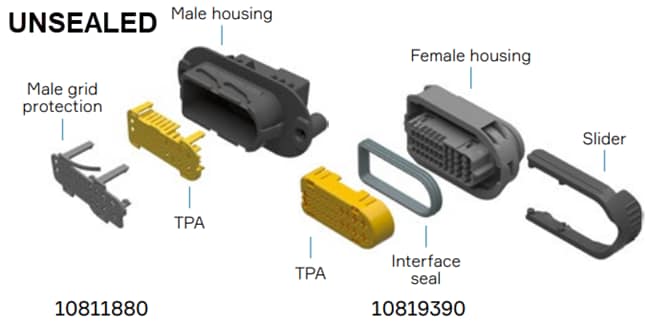

Unsealed
- 24, 29, or 42 cavity count (ways)
- 0.64mm, 1.5mm, and 2.8mm cavity configurations
- 3G vibration rating
- <60N connector mating force
- -40°C to +125°C operating temperature range
