Bourns UV Riedon™ Ceramic Wirewound Resistors
Bourns UV Riedon™ Ceramic Wirewound Resistors are ceramic wire wound resistors with a flameproof design that come in a vertical package. These resistors are available in 0.01kΩ to 91kΩ resistance range, 2W to 10W power ratings, and ±0.01% to ±10% (1% standard) tolerance. The UV resistors offer a 1500VAC dielectric strength and operate within the -55°C to 275°C temperature range. These resistors are RoHS compliant. The UV resistors are used in solar inverters, smart meters, current sensors, industrial power supplies, capacitor recharge/discharge circuits, and baseband units.
Features
- 0.01kΩ to 91kΩ resistances
- ±0.01% resistance tolerance
- 2W to 10W power rating
- Flameproof inorganic construction
- All welded resistance element
- Low Temperature Coefficient of Resistance (TCR)
- Non-inductive windings available
- RoHS compliant
Applications
- Industrial power supplies
- Inverters
- Motor drives
- Solar inverters
- Baseband units
- Smart meters
- Telecom 5G remote radio
- Capacitor recharge/discharge circuits
- Current sensing

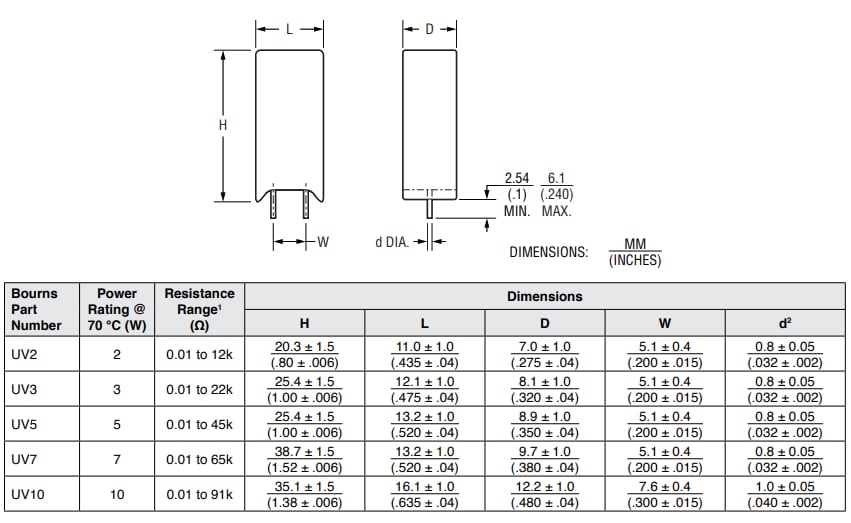

Specifications and Dimensions
Additional Resource
