Delta Electronics E48SK Eighth-Brick DC/DC Power Module
Delta Electronics E48SK DC/DC Power Module features 450W output power and efficiency of up to 96% in an eighth-brick package. This device is fully protected and offers a 36V to 75V input voltage range, 10.8V to 12V output voltage at 37.5A, and 2250VDC isolation. The series provides optional negative/positive remote on/off and optional PMBus pins. Applications for Delta Electronics E48SK DC/DC Power Module include optical transport, data networking, communications, and servers.
Features
- Typical efficiency of up to 96%
- PMBus communication
- Remote on/off
- Monotonic and pre-bias startup
- No minimum load required
- 2250VDC isolation
- Full protection
- Input undervoltage (UVP)
- Output overvoltage (OVP)
- Overcurrent (OCP)
- Overtemperature (OTP)
Applications
- Optical transport
- Data networking
- Communications
- Servers
Specifications
- 450W output power
- 36VIN to 75VIN input voltage range
- 10.8V to 12V output voltage at 36.5A

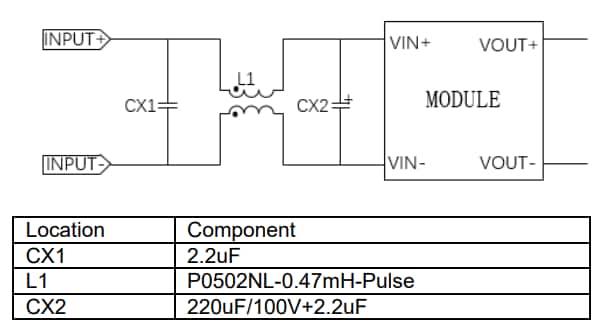

Schematic
