Nichicon LGC Miniature Snap-In Capacitors
Nichicon LGC Miniature Snap-In Capacitors are ultra-small-sized snap-in terminal-type capacitors that provide +105°C long-life assurance. Nichicon LGC Mini Snap-In Capacitors offer a smaller case size than the LGX series and are well-suited for equipment down-sizing. The series operates over a -40°C to +105°C temperature range, features a 500V rated voltage, and provides a 68µF to 680µF rated capacitance range.
Features
- Snap-in terminal type
- +105°C long life assurance, ultra-smaller-sized
- One rank smaller case size than LGX
- Suited for equipment down-sizing
- RoHS compliant (2011/65/EU,(EU)2015/863)
Specifications
- -40°C to +105°C temperature range
- 500V rated voltage
- 68µF to 680µF rated capacitance range
- ±20% at 120Hz, +20°C capacitance tolerance
- 22mm to 35mm diameter
- 25mm to 60mm length

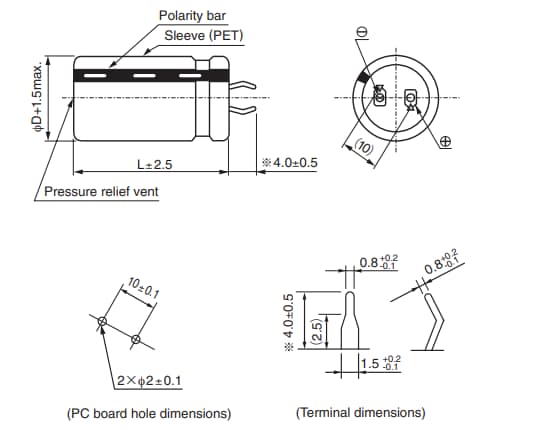

Product Drawing
