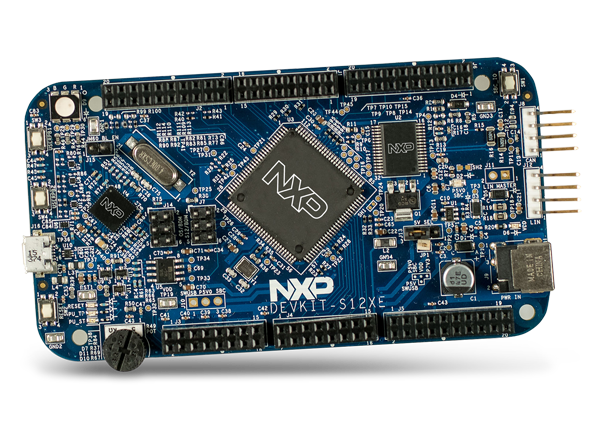

NXP Semiconductors DEVKIT-S12 Dev Kits for 16-bit S12 & S12X MCUs
NXP Semiconductors DEVKIT-S12 Development Kits are evaluation and development tools for application prototyping and demonstration for the NXP S12 and S12X family of Ultra-Reliable Microcontrollers. DEVKIT-S12 Development Kits offer CAN, LIN, SCI connections, and 10- to 12-bit ADC in a small form factor board compatible with the Arduino™ R3 UNO pinout. Expansion options are available using a DEVKIT-COMM board. These NXP Semiconductors Kits feature a 12V input, a USB-powered OpenBDM debugger, a potentiometer, dual pushbuttons, and an RGB LED.
Features
- S12G128 or 9S12XEP100 MCU
- OSBDM On-board Open Source Programming and Debugging Tool
- Freedom+ and Arduino I/O Headers
- USB to Serial Interface
- RGB LED
- ADC Potentiometer
- Supports CAN and LIN Connectors
- Power LED Indicators
Documents
- Quick Start Guides
- Additional Resources
Applicable Products
NXP Semiconductors Ultra-Reliable S12G 16-bit Automotive MCUs
16-bit automotive MCUs providing low-cost, high performance, and low pin count.
Related Products
NXP Semiconductors Ultra-Reliable MCUs Development Platforms
Prototyping development tools for use with NXP Automotive Microcontroller and Processor products.
Accessories
NXP Semiconductors DEVKIT-COMM Expansion Board
Expansion shield that adds additional connection options to Ultra-Reliable MCUs Development Kits.
Board Layout
