NXP Semiconductors i.MX RT1170 Crossover Microcontrollers

NXP Semiconductors i.MX RT1170 Crossover Microcontrollers feature a high-performance Arm® Cortex®-M based device with up to 6468 total CoreMarks® with Cortex-M7 at 1GHz and Cortex-M4 at 400MHz. The i.MX RT1170 MCUs are part of NXP's EdgeVerse™ edge computing platform. These MCUs feature real-time, low-latency response and low-power operation and are highly integrated. Typical applications include ML-based edge applications, industrial computing designs, and motor control, as well as power conversion, personal health, fitness, and voice-enabled IoT devices.

i.MX RT1170 MCU Comparison

Chart - NXP Semiconductors i.MX RT1170 Crossover Microcontrollers

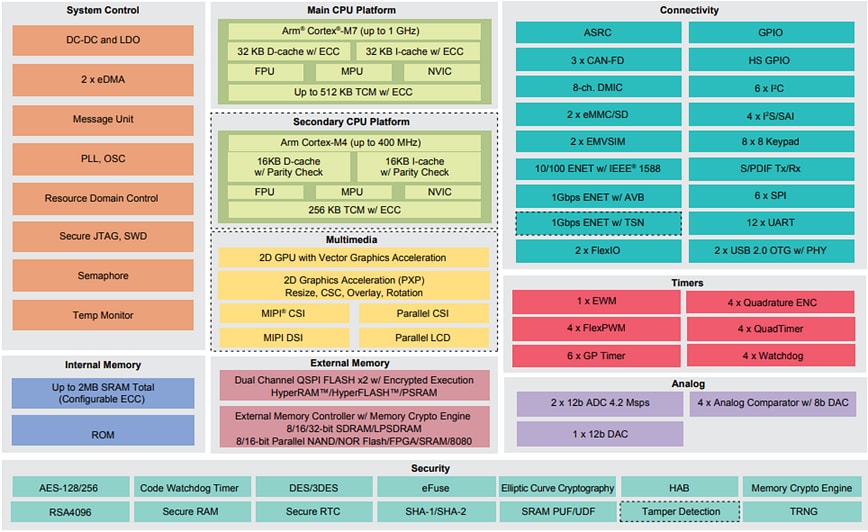

Features

Performance
- 1GHz Arm Cortex-M7 with 512KB TCM
- 400MHz Cortex-M4 with 256KB TCM
- Up to 6468 total CoreMarks
Rich feature set
- 2MB SRAM
- 2D GPU and 2D accelerator
- MIPI CSI/DSI
- 2 x 1Gbps Ethernet
Low power
- 28nm FD-SOI process
- Optimized for both active and leakage power

Advanced security
- Secure boot
- High-performance crypto
- Inline encryption engine (IEE)
- On-the-fly AES decryption (OTFAD)
- Tamper detection
Robust ecosystem
- Graphics
- ML/AI
- SW/tools
- Connectivity
