ODU Military & Defense Connectors
ODU Military and Defense Connectors are "smaller-lighter-faster" connectors that withstand harsh operating and environmental conditions. These high-speed, high-density connectors are highly reliable and ideal for soldier communication systems, military vehicles, and unmanned systems (UAV/UGV/UAS). Other military applications include power management devices, software-defined/air traffic control radios, secure/encrypted communication, VoIP, computer/PAN, and data recording devices.
The contact arrangement of an ODU data transmission connector differs from a standard data transmission connector due to the robust ODU specific design. However, the ODU design meets the electrical specifications of the respective standard data transmission protocol.
Features
- High-speed data-capable including USB®, Ethernet®, and HDMI®
- High density, up to 70% size, and weight reduction
- Rugged, robust housings with non-reflective surfaces
- IP68, IP69, IP6K8, and IP6K9K watertight protection options
- Dual lock and break-away with a threaded coupling ring
- Cable assembly integrated solutions
Applications
- Unmanned systems
- UAV
- UGV
- UAS
- Soldier communication systems
- Military vehicles

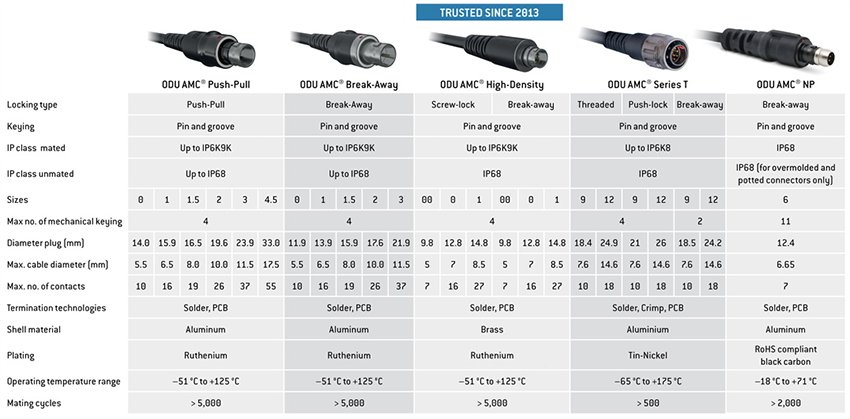

Characteristics
Featured Products
ODU AMC® High-Density HDMI Ethernet Cables
Features high contact-density connectors, Ethernet (10Gbit/s) data transmission, and robust design.
ODU AMC® Series T Square Flange Connectors
Standard or reverse gender type with 3 connection options: Backshell, crimp-sleeve/band-it, or PCB.
ODU AMC® Advanced Military Connectors
Advanced and highly reliable connector solution with push-pull locking or break-away function.
ODU AMC® High-Density Miniature High-Speed Connectors
For military, medical, and industrial applications, with significant space and weight reduction.
ODU AMC® High-Density Connectors with Dual Lock
Provide additional protection through screw locking in case of high resistance to vibrations.
ODU Conector militar de desconexión rápida AMC NP
Conectores militares de desconexión rápida con configuraciones de 6 y 7 pines.
ODU Conector de receptáculos Lock-to-1 de 3 vías AMC® serie T
Disponibles en tipos de bloqueo Push-Pull, separación o sellado de roscas y tamaños de carcasa 9 o 12.
ODU MINI-SNAP® Series K IP68 Circular Connectors
Highly configurable push-pull circular connector family with up to IP68 protection when mated.
ODU MINI-SNAP® Series L Circular Push-Pull Connectors
Highly configurable push-pull circular connector family available in sizes as small as 00.
ODU High-Speed & High-Density Connectors
For military, medical, and industrial applications, offers significant space and weight reductions.
ODU AMC® Chrome-Plated High-Speed Connectors
Robust connectors with USB 3.2 Gen 1x1, USB 2.0, HDMI, and Ethernet data transfer capability.
ODU AMC® High-Density USB Cable Assemblies
Use break-away and screw-locking principles and feature a 28AWG wire cross-section.
ODU AMC® High-Density Protective Caps
Protects AMC® High-Density Connectors, features TPU black rubber housing with an IPX7 rating.
Disclaimer
The contact arrangement of an ODU data transmission connector differs from that of a standard data transmission connector due to the robust ODU-specific design. However, the ODU design meets the electrical specifications derived from the respective standard data transmission protocol.
