Renesas Electronics Isolated Multi-Channel Sensing Solution
Renesas Electronics Isolated Multi-Channel Sensing Solution is a complete reference design for a multi-channel sensing solution. This solution is ideal for applications like temperature controllers, data loggers, and programmable logic controller (PLC) analog inputs. Isolation between digital and analog components (and among channels) eliminates the noise interference and keeps analog-to-digital converter (ADC) results accurate.
Features
- Complete combination of microcontroller (sensor analog front-end (AFE) and signal conditioning), buck regulator and isolation photocoupler with microcontroller (MCU) reference software
- MCU with AFE for sensing
- Reduces main MCU workload
- Flexible communication through 3-wire SPI interface
- Simple timing design for simultaneous multi-channel sensing
- Photocoupler isolation
- Long isolation distance
- No noise emission

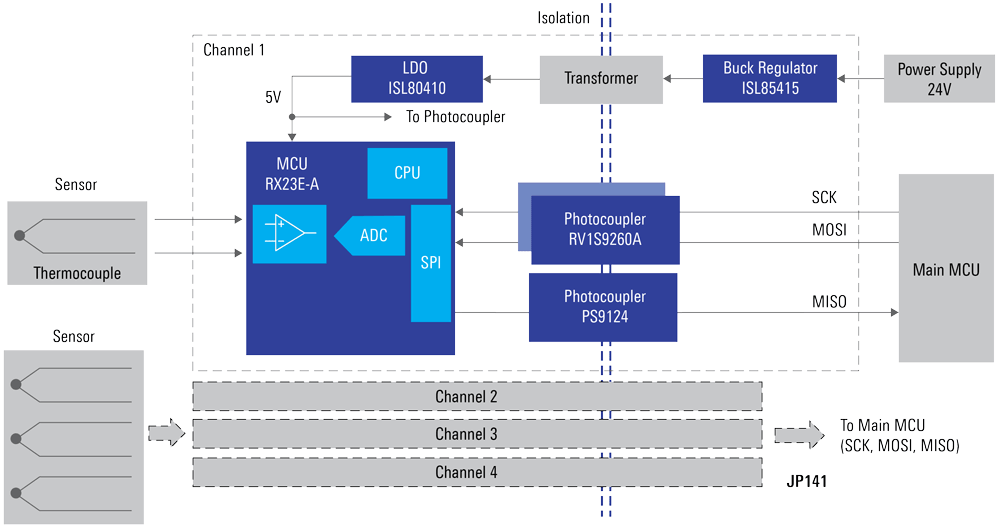

System Block Diagram
FEATURED PRODUCTS
Renesas Electronics RX23E-A MCUs
32MHz and 32-bit RX MCUs with built-in FPU and up to 256KB flash.
Renesas Electronics ISL80410 Linear Regulators
Offers high voltage, adjustable VOUT, and low quiescent current for always on applications.
Renesas Electronics ISL85415 Switching Regulator
Wide voltage input range, 500mA output current provides a flexible and dependable design solution.
Renesas Electronics RV1S9x60A High Speed Photocouplers
15Mbps photocouplers ideal for industrial automation and green energy systems.
