TE Connectivity AMPMODU 2mm Breakaway Headers

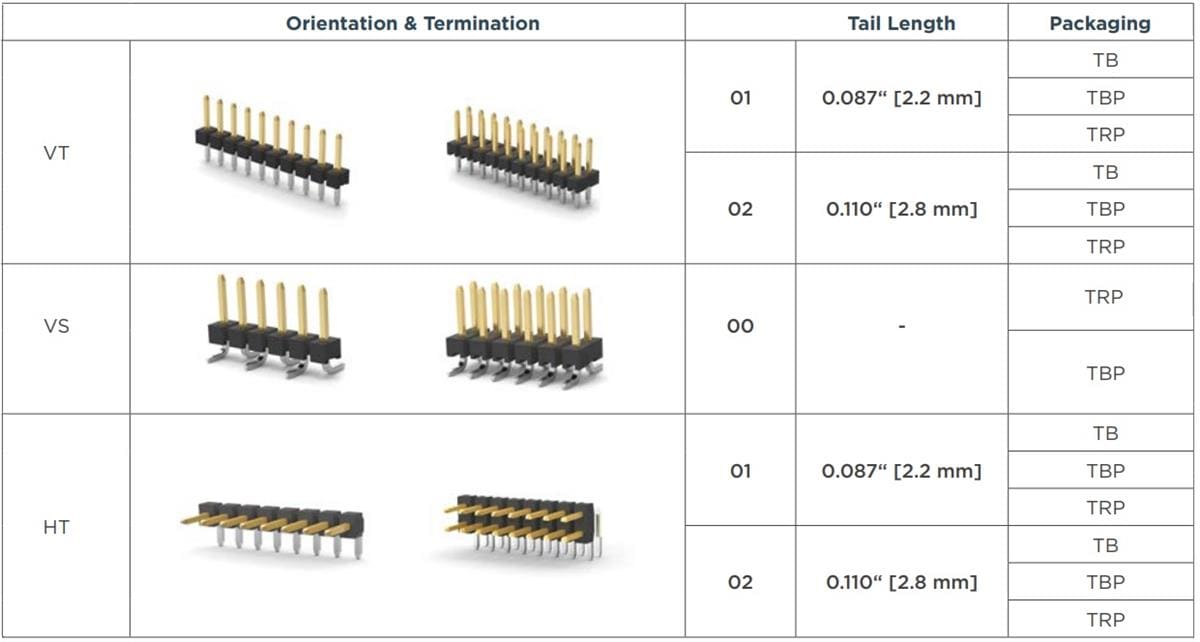

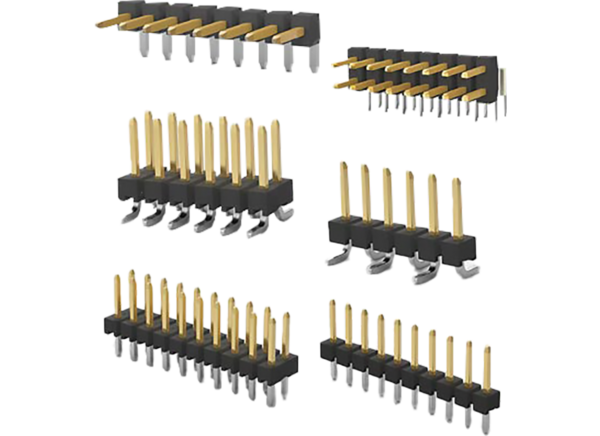

TE Connectivity’s (TE) AMPMODU 2mm Breakaway Headers occupy 38% less space on a PCB than the standard 2.54mm [0.100”] centerline connectors. This allows designers to build more functionality onto boards. The AMPMODU 2mm breakaway headers come in suitable variants for automated surface mounting, through-hole-reflow, and traditional through-hole mounting onto boards. This provides designers/customers with efficient and cost-effective applications on boards and a spectrum of options for PCB assemblies. These breakaway headers are intermateable with other major brand receptacles in the market. Typical applications include PLC/IO devices, servo drives, material handling equipment, building and home automation, industrial controls, robotics, instrumentation, and test equipment.

Features

38% space saving on a PCB board compared to 2.54mm [0.100”] centerline, allowing for extended functionality
Intermateable solution with other major brand receptacles

Efficient and cost-effective application on boards with automated surface mounting and through-hole-reflow manufacturing

Specifications

Electrical:
- 2A current rating (maximum)
- 650V_ACdielectric withstanding voltage
- 125V_DC or 125V_AC RMS operating voltage
Mechanical:
- Operating temperature:
  - -40°C to 105°C (tin plated)
  - -40°C to 125°C (gold plated)
- Solderability: Reflow capable up to 260°C
- Vibration: No electrical discontinuity greater than 1µs

Materials:
- Plating:
  - 30µ” [0.76µm] gold
  - 15µ” [0.38µm] gold
  - 4µ” [0.1µm] gold flash Tin
- Contact material: Phosphor bronze
- Housing material: High-temperature plastic (LCP), black
- Environmental:
  - UL94 V0, low halogen
  - Operating environment class III
