Texas Instruments MUX50x Precision Analog Multiplexers
Texas Instruments MUX50x Precision Analog Multiplexers are modern complementary metal-oxide-semiconductor (CMOS) analog multiplexers (muxes). The MUX508 offers 8:1 single-ended channels; whereas, the MUX509 offers differential 4:1 (8:2) channels. The Texas Instruments MUX508 and MUX509 work equally well with dual supplies (±5V to ±18V) or a single supply (10V to 36V). These devices also perform well with symmetric supplies (such as VDD = 12V, VSS = –12V), and unsymmetric supplies (such as VDD = 12V, VSS = –5V). All digital inputs have TTL-logic compatible thresholds, ensuring TTL and CMOS logic compatibility when operating in the valid supply voltage range.
Features
- Low on-capacitance
- MUX508: 9.4pF
- MUX509: 6.7pF
- 10pA low input leakage
- 0.3pC low charge injection
- Rail-to-rail operation
- ±5V to ±18V, 10V to 36V wide supply range
- 125Ω low on-resistance
- 92ns transition time
- Break-Before-Make switching action
- EN pin connectable to VDD
- 2V to VDD logic levels
- 45µA low supply current
- 2000V ESD protection HBM
- Industry-standard TSSOP package
Applications
- Factory automation and industrial process control
- Programmable Logic Controllers (PLC)
- Analog input modules
- ATE test equipment
- Digital multimeters
- Battery monitoring systems
Related Development Tools
Texas Instruments MUX36xxxEVM-PDK Evaluation Modules (EVMs)
Platform for evaluating the performance of the MUX36D04 or MUX36S08, analog multiplexers.
Texas Instruments EVM-LEADED1 DIP Header Adapter Board
Allows for quick testing and breadboarding of TI's common leaded packages.
Mikroe MUX click (MIKROE-3247)
Click board that switches one of the four differential inputs to one differential output.
Mikroe MUX 2 Click (MIKROE-3245)
A Click board that switches one of the eight inputs to one output.

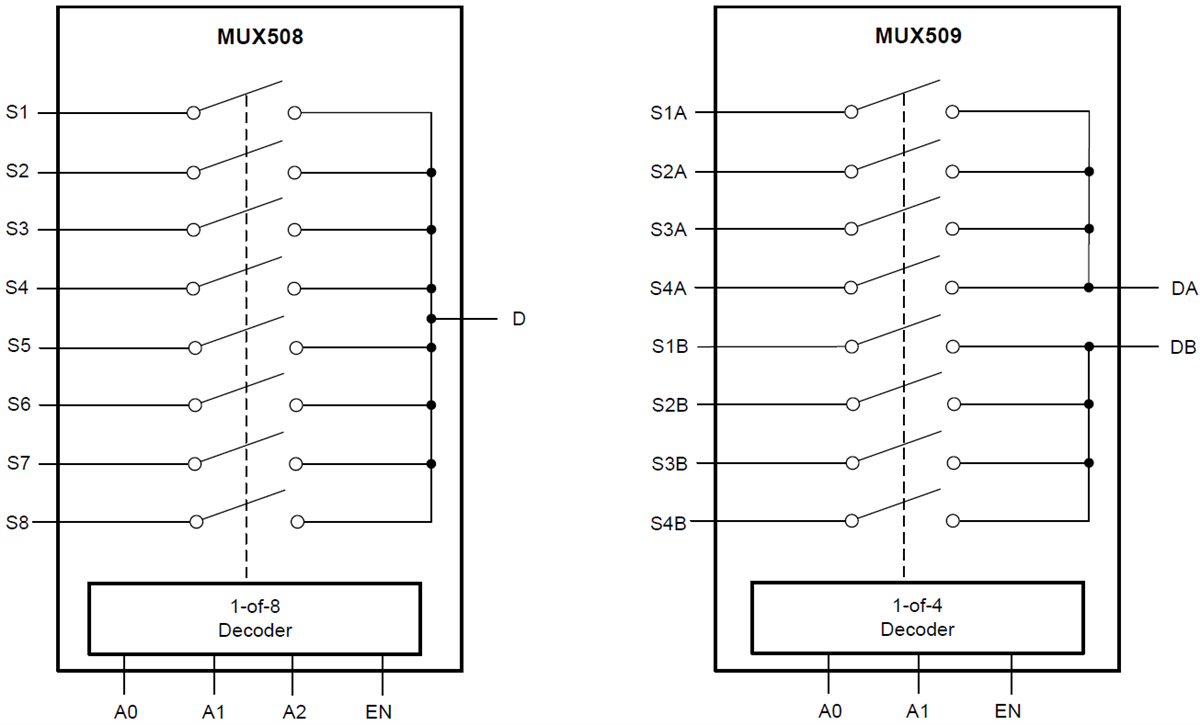

Functional Block Diagrams
