Texas Instruments SN74HCS166/SN74HCS166-Q1 Shift Registers

Texas Instruments SN74HCS166/SN74HCS166-Q1 8-Bit Parallel-Load Shift Registers contain an 8-bit shift register with one serial input and eight parallel-load inputs. The Texas Instruments SN74HCS166-Q1 devices are AEC-Q100 qualified for automotive applications.

Features

  • 2V to 6V wide operating voltage range
  • Schmitt-trigger inputs allow for slow or noisy input signals
  • ±7.8mA output drive at 6V
  • –40°C to +125°C, TA extended ambient temperature range
  • Low power consumption
    • Typical ICC of 100nA
    • Typical input leakage current of ±100nA

Applications

  • Input expansion
  • 8-bit data storage

Datasheets

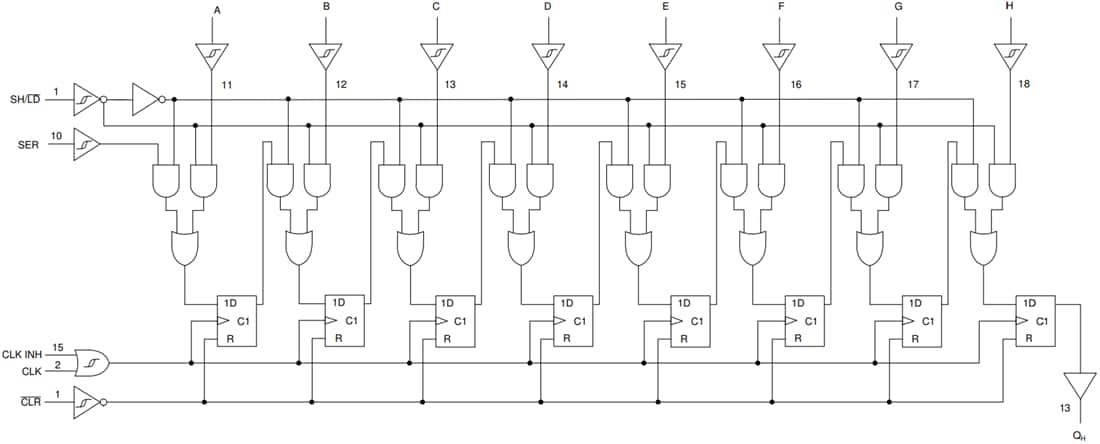

Functional Block Diagram

Block Diagram - Texas Instruments SN74HCS166/SN74HCS166-Q1 Shift Registers

Related Development Tool

Texas Instruments 14-24-LOGIC-EVM Logic Evaluation Module (EVM)

Generic evaluation module developed to support any TI logic leaded device in a 14 to 24 pin count.

Learn Moreacerca de Texas Instruments 14-24-LOGIC-EVM Logic Evaluation Module (EVM) View Productsrelacionado con Texas Instruments 14-24-LOGIC-EVM Logic Evaluation Module (EVM)
Publicado: 2020-08-11 | Actualizado: 2024-08-01
