TDK HV Heater Applications for 5kW & Higher
TDK HV Heater Applications for 5kW and Higher incorporate a variety of capacitors for high-voltage heating applications. The TDK product portfolio for these applications includes film capacitors, multilayer ceramic capacitors (MLCCs), and CeraLink® capacitors.
Application Range

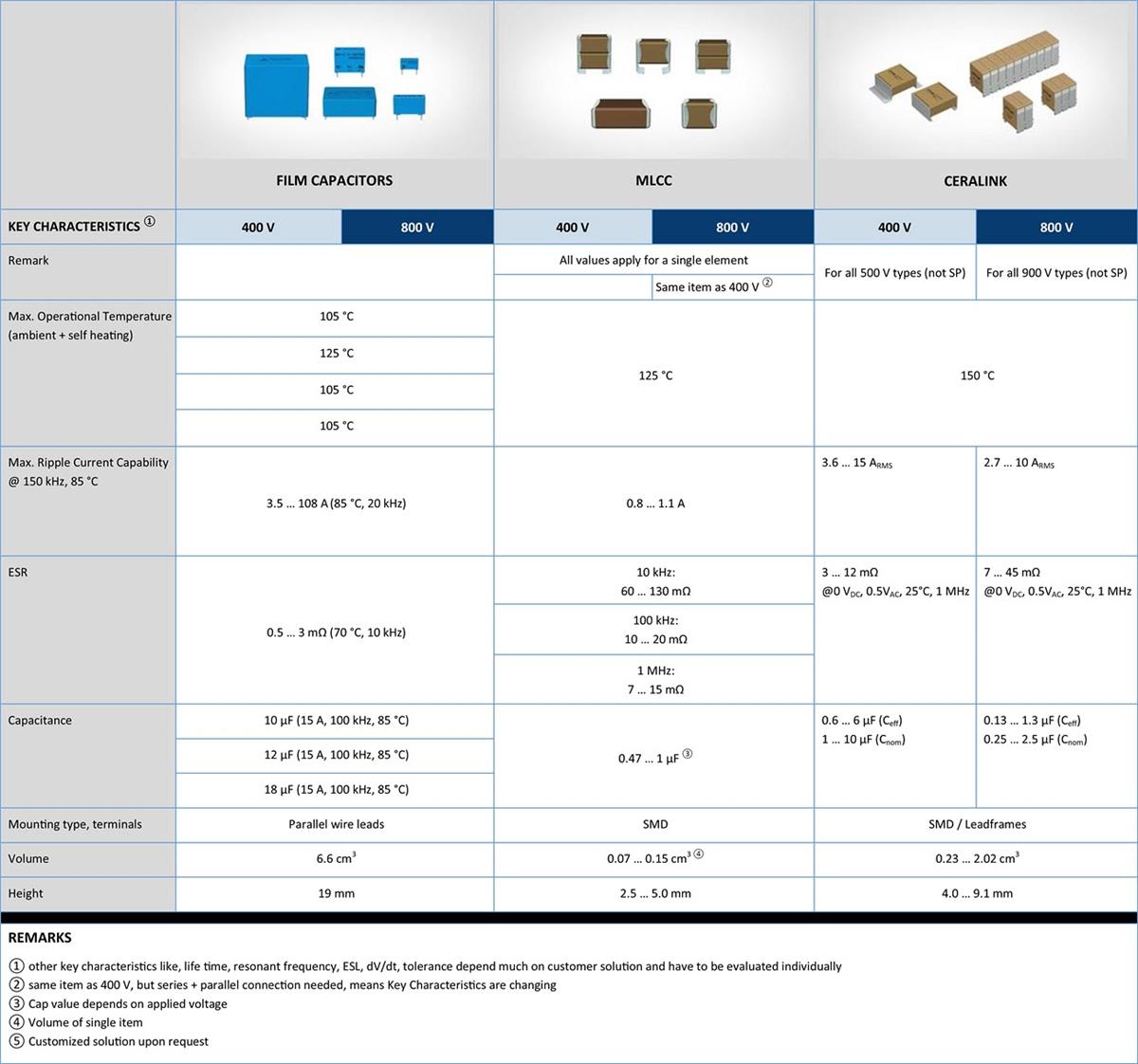

Product Characteristics
Film Capacitors
EPCOS / TDK B3277xH Metallized Polypropylene Film Capacitors
Designed with dielectric polypropylene, which exhibits high pulse handling and lower self-heating.
EPCOS / TDK B3277xP DC Link Film Capacitors
Up to 50µF capacitance values, 125°C maximum operating temperature, & voltages of 630VDC to 840VDC.
EPCOS / TDK High Density MKP DC Link Film Capacitors
Features capacitance values up to 480μF and good self-healing properties.
EPCOS / TDK B3267xZ MKP Film Capacitors
Maximum operating temperature of +125°C, compact design, and are AEC-Q200D compliant.
MLCCS - SMD
400V and 800V
CGA9P1X7T2J474K250KC - Learn More
CKG57NX7T2J105M500JJ - Learn More
CeraLink Capacitors
EPCOS / TDK CeraLink™ Low-Profile (LP) Capacitors
High ripple current capability, low ESL, low ESR, & low power loss with low dielectric absorption.
EPCOS / TDK CeraLink™ Flex Assembly Capacitors
High ripple current, high temp, low ESL, low ESR, low dielectric absorption, minimal power loss.
Related Capacitors
TDK Capacitors for DC‑Link Circuits
Wide range of options & technologies for ideal, cost-effective solutions for DC-Link functions.
