Vishay Semiconductors eSMP® Package Evolution
Vishay Semiconductors Diodes and Rectifiers in the enhanced surface-mount power (eSMP®) package deliver higher current handling and power efficiency with a unique design that promotes better thermal performance and reliability. These space-saving miniature devices feature low profiles and come in asymmetrical and symmetrical flat-type versions. Typical applications include automotive, industrial, and telecommunications.
SMA Legacy Package
eSMP Packages from SMA Legacy
Features
- SMP (DO-220AA)
- 57% in space savings
- 47% in height reduction
- 100% in current rating
- SMF (DO-291AB)
- 49% in space savings
- 46% in height reduction
- 100% in current rating
- MicroSMP (DO-219AD)
- 24% in space savings
- 31% in height reduction
- 67% in current rating
SMB Legacy Package
eSMP Packages from SMB Legacy
Features
- SlimSMA (DO-221AC)
- 70% in space savings
- 41% in height reduction
- 71% in current rating
- SlimSMAW (DO-221AD)
- 60% in space savings
- 43% in height reduction
- 71% in current rating
- SMF (DO-219AB)
- 34% in space
- 43% in height
- 43% in current rating
- SMP (DO-220AA)
- 40% in space savings
- 43% in height reduction
- 43% in current rating
- DFN3820A
- 39% in space
- 38% in height
- 100% in current rating
SMC Legacy Package
eSMP packages from SMC Legacy
Features
- SMPA (DO-221BC)
- 71% in space savings
- 59% in height reduction
- 160% in current rating
- SlimSMA (DO-221AC)
- 71% in space savings
- 59% in height reduction
- 100% in current rating
- SlimSMAW (DO-221AC)
- 71% in space savings
- 59% in height reduction
- 100% in current rating
Features
- SlimDPAK (TO-252AE)
- 86% in space savings
- 57% in height reduction
- 400% in current rating
- SMPC (TO-277A)
- 46% in space savings
- 48% in height reduction
- 250% in current rating
- SMPA (DO-221BC)
- 21% in space
- 42% in height
- 80% in current rating
D2PAK Legacy Package
eSMP Packages from D2PAK Legacy
Features
- SMPD (TO-263AC)
- 81% in space savings
- 38% in height
- 150% in current rating
- SlimDPAK (TO-252AE)
- 36% in space savings
- 29% in height reduction
- 87% in current rating
- FlatPAK 5 x 6
- 20% in space savings
- 22% in height reduction
- 75% in current rating
- SMPC (TO-277A)
- 19% in space savings
- 25% in height reduction
- 62% in current rating
Videos

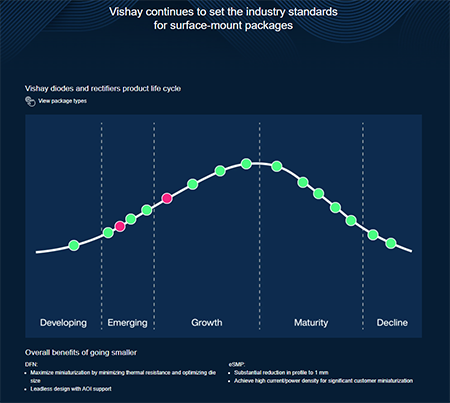

Infographic
